2-way thermostat concealed module
E176901
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2F8b98206e6524f4f8c6c1eb8e107ca3bf09edb6a5%2Fimage.jpeg&w=3840&q=75)
FUNZIONI: 2-way horizontal thermostat concealed module for Modular mixer
2 way diverter
Modular
Thermostatic

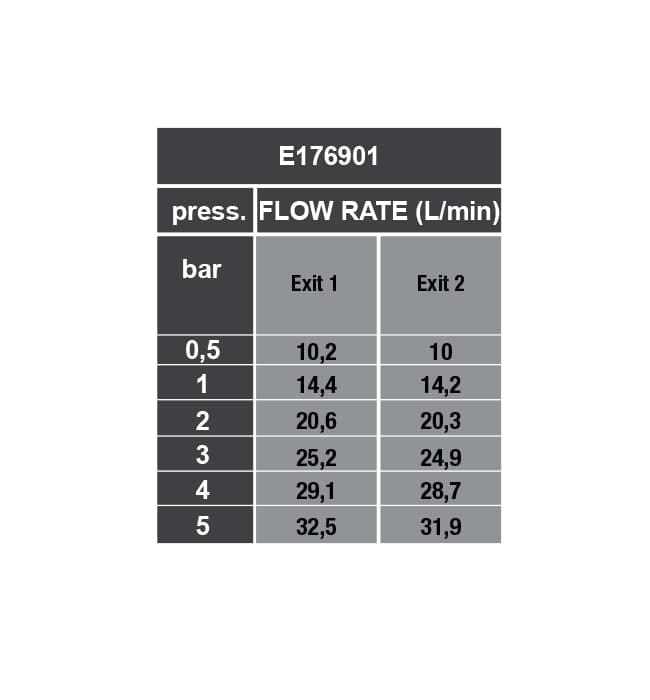

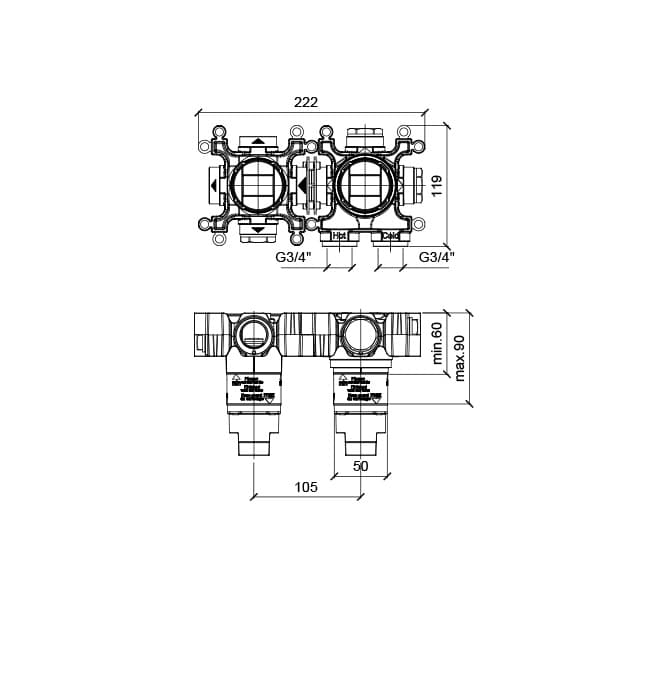

DIMENSIONS AND FLOWRATE
The measurements are expressed in millimeters
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2F55dc71152794675d42faaa14b3f166f637789e38%2Fimage.jpeg&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2F7de2d5fb87dd3aafc981f3cab509fd070b09706c%2Fimage.jpeg&w=3840&q=75)
FUNZIONI: 2-way horizontal thermostat concealed module for Modular mixer
2 way diverter
Modular
Thermostatic
The measurements are expressed in millimeters
